What are the installation methods for welding booms? How should one choose between column-mounted and wall-mounted booms?

I. What are the common installation methods for welding booms?

What are the main differences between column-mounted and wall-mounted models?

For companies preparing to purchase welding booms, in addition to considering boom length, load-bearing capacity, and rotation range, the suitability of the installation method for their existing workshop is equally important. Currently, the most common installation methods for welding booms include column-mounted and wall-mounted types, with different methods catering to different workshop structures and operational needs.

① Column-mounted installation is a relatively independent installation method. It provides an independent support structure for the welding boom by setting up a separate column.

● It does not require reliance on existing steel beams or other structures in the workshop.

● The equipment installation location can be planned according to the available space on site.

●More suitable for workshops that require independent welding stations.

● It also offers a degree of flexibility for workshop renovations or locations lacking suitable load-bearing structures.

② Wall-mounted installation involves fixing the equipment to an existing structure, such as workshop steel beams or building columns.

● Installation can be carried out using the existing structure in the workshop.

●Reduce the ground space occupied by setting up individual columns.

●More suitable for workshop structures that meet installation requirements.

Therefore, there is no absolute "better" installation method; the key is to consider the customer's workshop structure and actual operational needs.

II. When is it more appropriate to choose a column-type welding boom?

It does not rely on existing steel beams and is suitable for independently planning welding stations.

If the workshop lacks suitable steel beams, walls, or columns to serve as an installation foundation, or if the workshop wants to redesign its welding stations, column-mounted welding booms are usually easier to design as a whole.

From the perspective of actual user experience, the main advantages of column-mounted systems include:

● Installation location is easier to plan: the equipment installation area can be determined based on the welding station and workpiece location.

●Reduce reliance on the existing workshop structure: There is no need to change the existing steel beams or wall structure in order to install the crane.

●Suitable for new or renovated workshops: The location of the columns can be planned in advance during the equipment layout stage.

●Suitable for independent workstations: When a welding area requires a separate wire feeder and welding torch, a complete work area can be formed by a single independent column.

For example, in workshops such as steel structure manufacturing, machining, and equipment manufacturing, if the welding stations are relatively fixed and there are no suitable load-bearing points on site, the column-mounted installation scheme allows for more independent equipment installation.

However, before selecting a support column, it is necessary to comprehensively confirm the ground foundation, equipment height, rotation range, and on-site access to ensure that the installation will not affect the operation of other equipment.

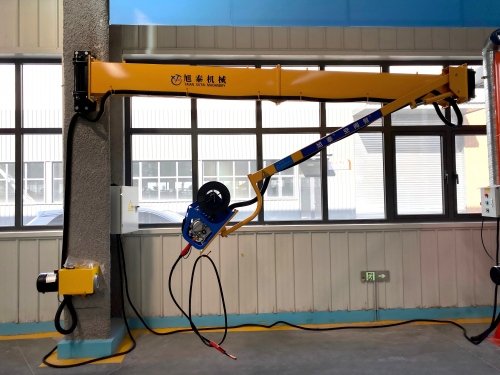

III. When is it more suitable to choose a wall-mounted unit?

Installed using steel beams or columns in the workshop, reducing ground space required.

If the workshop already has the required steel beams, columns, and other structural elements, a wall-mounted welding boom can make full use of the existing space by installing the equipment on the workshop structure. For users with limited space, one of the greatest advantages of this installation method is that it reduces the floor space occupied by the equipment, resulting in a cleaner welding workshop.

Wall-mounted units can be installed according to site conditions:

● Workshop steel beams: Utilize existing steel structures as installation foundations.

●Workshop columns: Secure the equipment to the required building columns.

This method is particularly suitable for welding stations located near the edge of the workshop, steel beams, or columns. After the equipment is installed, the welding boom can be extended to the actual welding area, reducing the space occupied by additional equipment.

For older factory buildings already in production, if the company does not want to rebuild and install independent columns, the wall-mounted solution will reduce the workload during the renovation.

It is important to note that not all steel beams or columns can be directly fitted with welded booms. Before finalizing a plan, the structural strength, installation location, load-bearing capacity, and boom operating range should be confirmed, and a site assessment by professionals should be conducted if necessary.

IV. How to choose between freestanding and wall-mounted models? First, consider these four practical questions.

Don't just look at the price; choose the most suitable installation plan based on your workshop conditions.

For enterprise users, when choosing a welding boom installation method, it is not recommended to simply compare the price of column-mounted versus wall-mounted booms. Instead, the actual production needs should be considered. The following issues should be given priority consideration:

1. Does the workshop have a suitable installation structure?

If there are suitable steel beams or columns, wall-mounted installations should be given priority; otherwise, freestanding column installations can be considered.

2. Is ground space scarce?

If the space around the workshop aisles and workstations is limited, wall-mounted units can reduce the space occupied by independent columns on the ground.

3. Does the welding station need to be planned independently?

If you want to create an independent welding station and the equipment location is relatively fixed, the column type is more convenient for overall layout.

4. Does the equipment's rotation range meet the operational requirements?

Regardless of the installation method used, it is necessary to confirm the boom length, rotation range, and workpiece position in advance to avoid blind spots after installation.

Taian Xutai Technology Co., Ltd. can help customers select the most suitable welding boom installation solution based on their workshop structure, welding stations, equipment layout, and operating range. For customers, correctly choosing the installation method not only affects the smooth installation of the equipment but also directly impacts subsequent working space, equipment utilization efficiency, and workshop layout. Rather than determining the equipment first and then considering installation, it's better to conduct overall planning based on site conditions before procurement, ensuring the welding boom truly serves actual welding production.
