Welding workstations often suffer from severe fume pollution during welding, cumbersome wire feeders that are difficult to move, and limited operational coverage. Building on its existing electric welding boom, Xutai Machinery has integrated a welding fume extraction system, combining electric drive, a wire feeder bracket and a fume extraction hose into a single unit. The equipment is fitted with a 220V, 60Hz motor drive system, allowing the boom to be raised and lowered smoothly via remote control, thereby effectively reducing manual labour and improving welding efficiency.

Furthermore, the high-efficiency dust extraction unit captures and collects fumes in real time during the welding process, minimising the spread of harmful fumes and improving the working environment.

● Electric Drive Assistance System

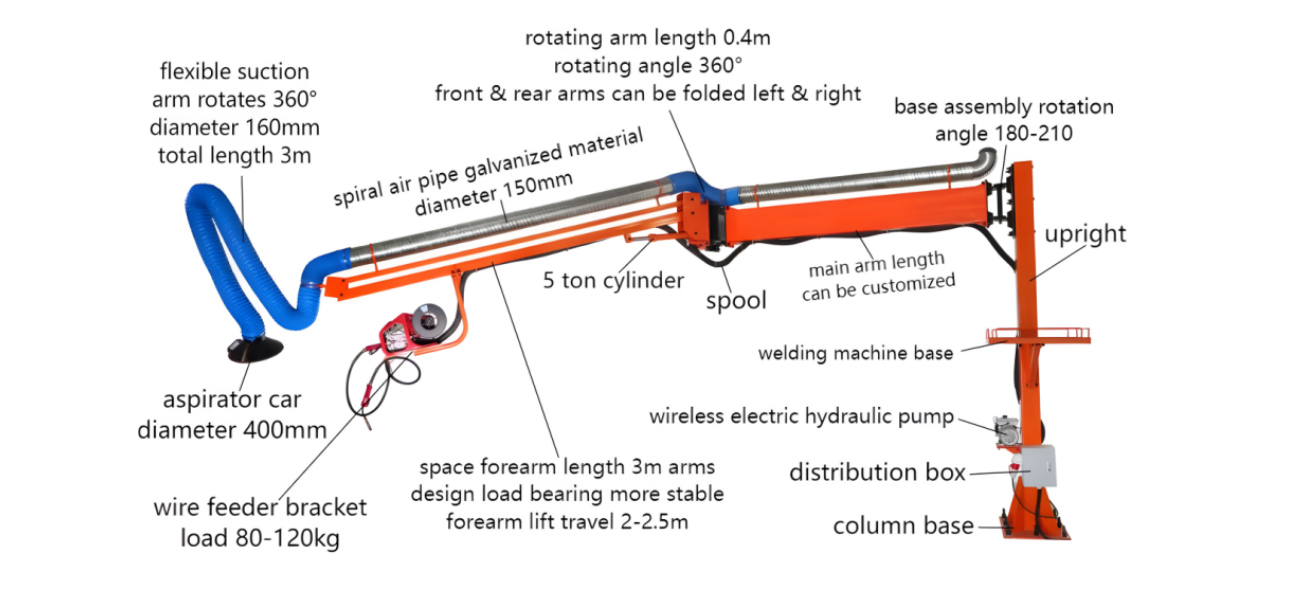

Driven by a 220V, 60Hz motor, this system enables automatic lifting and lowering of the boom.

● Dual-Arm Design

The foldable design minimises the footprint and offers greater flexibility, making it suitable for a variety of welding station layouts.

● 6 meters Working Radius

With a boom length of 6–7.5meters, it offers a wide coverage area, reducing the need to move workpieces and minimising equipment adjustment time.

● Electric Lifting Operation

Powered by electricity, the wire feeder arm can be raised and lowered via remote control, ensuring flexible and effortless operation.

● High-Efficiency Fume Purification System

Equipped with a welding fume extraction and purification unit, it simultaneously collects fumes and dust during the welding process, effectively improving workshop air quality and safeguarding the occupational health of operators.

● Reduce labor intensity

Effectively reduces the physical workload caused by the weight of the welding machine, thereby lowering the physical strain on welders.

The SPE-605 electric vacuum welding boom offers two installation options to suit workshop environments and production requirements: free-standing column mounting and workshop steel beam mounting.

● Free standing column installation requires no attachment to the building structure, offering flexible layout options and making it suitable for new or standalone welding stations;

● The steel beams are installed by being directly secured to the workshop’s steel structure and steel beams, effectively saving floor space and improving the utilisation of the factory premises.

Both installation methods ensure the stable operation of the welding boom, meeting the requirements of various welding production lines and workstations.

● Xutai Machinery’s welding booms are finished using a pure electrostatic powder coating process.

● We are available in a range of colors including yellow, orange and green.

● Should you require any other colors, simply provide the relevant colour code and we will produce them to your specifications.

1. Static load test

Install the SPE-605 electric vacuum welding boom in position, attach the standard weight assembly, and apply loads in stages from the rated load to 1.25 times the rated load to 1.5 times the rated load, allowing the unit to stand for 10–30 minutes.

Observation: No plastic deformation, no cracks in the welds, no structural deformation, and no abnormal noises.

If none of the above conditions are observed after 30 minutes, the product is deemed compliant.

2. Dynamic Test

The SPE-605 electric vacuum welding boom is repeatedly raised and lowered under the rated load, rotated 180°, with the wire feeder arm rotated 320°, and subjected to start-stop cycles to check for any vibration, looseness or fatigue cracks. If none of the aforementioned issues occur during one hour of continuous dynamic testing, the product is deemed to have passed inspection.

3.Once the product has met the requirements of the above static and dynamic tests, the quality control department will affix labels and a certificate of conformity, and the product will be released for sale.

The Xutai Machinery SPE-605 electric vacuum welding boom is widely used in:

● Civil defence equipment

● Shipbuilding

● Hardware and machinery manufacturing

● Road infrastructure equipment manufacturing

● Crane manufacturing

● Pressure vessel manufacturing

With a wide range of applications, it is suitable for welding workpieces of varying shapes, as well as scenarios involving multiple types of welding, high-volume welding production and prolonged continuous welding operations.

The motor voltage of the Xutai Machinery SPE-605 Electric vacuum welding boom and wire feeder arm can be adjusted to meet customer requirements. Utilising proprietary technology, it is compatible with a wide range of welding industries both domestically and internationally. Through a structural design that combines electric drive with dust extraction, coupled with extensive industry experience, we provide customers with more efficient, labour-saving and safe welding station solutions.

Xutai Machinery offers professional customisation services for the SPE-605 electric vacuum welding boom, helping businesses improve welding efficiency, reduce production costs and achieve modernisation of their welding production processes.
