What are the differences between a cantilever crane and an overhead crane? How to choose between them for different lifting needs?

I. Understanding Cantilever Cranes and Overhead Cranes: Different Structures, Different Application Scenarios

Choosing the right equipment is crucial for improving material handling efficiency, considering factors such as the scope of work, installation method, and usage scenario.

In industrial production, machining, warehousing and logistics, and equipment assembly, the choice of lifting equipment directly affects material handling efficiency, workshop space utilization, and daily operating costs. Cantilever cranes and overhead cranes are both common material handling equipment, but they differ significantly in structural design, operating range, and applicable scenarios.

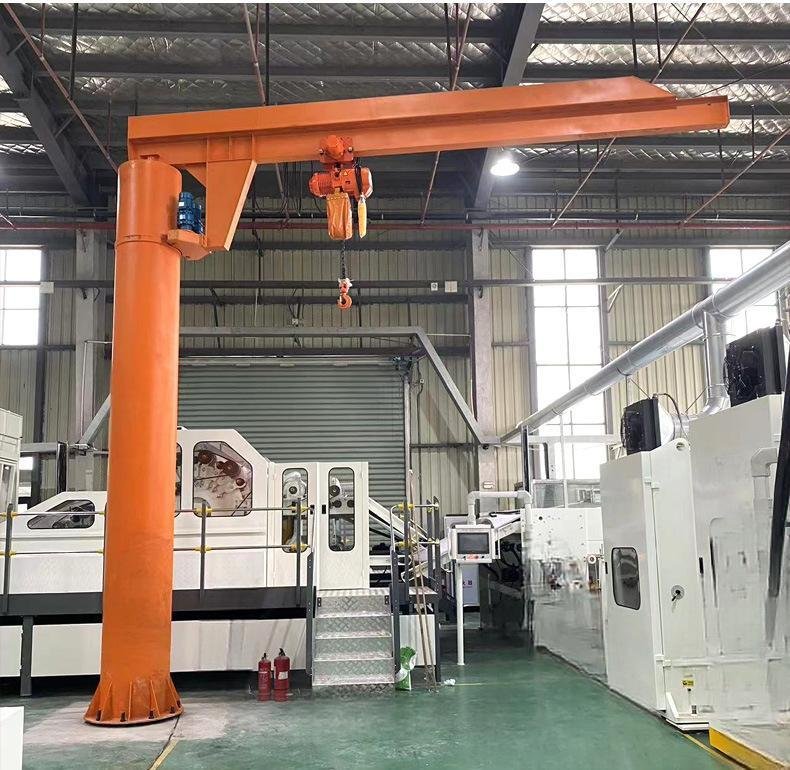

● Cantilever crane: It usually consists of a column, cantilever, slewing mechanism and lifting device. It can achieve a certain angle of rotation depending on the type of equipment. It is suitable for material hoisting near fixed work positions, such as loading and unloading machine tools, assembling parts and short-distance transfer between workbenches.

● Overhead crane: usually refers to bridge crane, which runs along the workshop track by relying on the bridge frame, and can cover a large area of the workshop. It is suitable for material transfer on the production line, handling of heavy equipment and hoisting of large workpieces.

In simple terms, cantilever cranes focus more on flexible lifting at specific workstations, while overhead cranes are more focused on material handling over a large area and across multiple workstations. When selecting a crane, companies should make a comprehensive judgment based on factors such as the actual operating radius, lifting frequency, load weight, and factory conditions.

II. Cantilever Crane Selection Guide: Flexible and efficient, meeting the material handling needs of workstations.

With flexible rotation and convenient operation, it is suitable for fixed-point hoisting needs in small to medium ranges.

For machining workshops, maintenance stations, assembly areas, and small production lines, if the materials are mainly concentrated around a certain workbench or equipment, a cantilever crane is often a worthwhile solution to consider.

The main advantages of cantilever cranes include:

● Space saving: The equipment can be designed with column-mounted or wall-mounted structures to make reasonable use of the space around the workstation and reduce the occupation of ground handling passages, depending on the site conditions.

● Improve work efficiency: Workpieces can be quickly hoisted to machine tools, assembly tables or designated locations, reducing the time spent on manual handling and repeated transfers, and improving efficiency.

● Adaptable to workstation requirements: Models can be selected based on parameters such as hoisting radius, rated lifting capacity, and slewing angle to meet the handling requirements of different work areas.

● Facilitates workstation configuration: For scenarios requiring frequent loading and unloading, single-point assembly, or partial maintenance, a reasonable layout can shorten the material handling distance.

It is important to note that the effective working range of a cantilever crane is limited by factors such as the cantilever length, slewing angle, installation location, and surrounding obstacles. If it is necessary to frequently cross multiple workstations, or if the lifting range covers the entire factory building, the appropriate crane operation plan should be further evaluated.

III. Overhead Crane Selection Guide: Expanding the operational coverage area and adapting to multi-station production.

With its wide coverage and convenient workstation connections, it is suitable for large-scale production and heavy handling.

When companies need to transfer materials between multiple production stations, or frequently move large steel structures, molds, mechanical equipment and other heavy workpieces, overhead cranes usually have more obvious application advantages.

The main advantages of driving include:

● Wider coverage: It can run longitudinally along the factory track and move laterally via a crane trolley, making it suitable for large-area operation areas.

● Facilitates multi-station material handling: It can connect different processing, assembly, and temporary storage areas, reducing material transfer links and improving the efficiency of production process integration.

● Adaptable to various load requirements: It can be configured according to parameters such as rated lifting capacity, span, lifting height and working level to meet different production tasks.

● Beneficial for workshop logistics planning: For enterprises with large production batches and frequent material flow, reasonable configuration of overhead cranes helps to optimize handling routes and workshop layout.

However, overhead cranes typically require design and installation that takes into account factory structure, track layout, installation space, and building load-bearing capacity, demanding relatively high levels of planning expertise in the early stages. If a company only needs to perform short-distance hoisting at a fixed workstation, configuring a complete overhead crane system may not be cost-effective.

IV. How to choose between a cantilever crane and a overhead crane?

Based on actual working conditions, safety, efficiency, and long-term operating costs are taken into account.

There's no absolute superiority or inferiority between cantilever cranes and overhead cranes; the key is whether the equipment meets the company's actual lifting needs. Before selecting a model, it's recommended to focus on confirming the following four aspects:

1. Define the lifting scope: For single workstations or localized areas, prioritize the evaluation of cantilever cranes; for areas requiring coverage of multiple workstations or large factory areas, focus on overhead cranes.

2. Verify load parameters: Determine the required rated lifting capacity based on the maximum lifting weight, workpiece size, and lifting equipment weight, and reserve reasonable operating conditions.

3. Assess factory conditions: Determine whether the equipment meets the installation requirements by considering factors such as floor height, installation location, building structure, equipment layout, and existing production lines.

4. Calculate the overall cost: In addition to the equipment purchase cost, the installation and construction costs, subsequent maintenance, downtime impact, and long-term operating efficiency should also be considered.

Taian Xutai Technology Co., Ltd. will fully communicate with customers about the actual working conditions before purchasing to avoid investment waste due to oversized equipment configuration, or production efficiency being affected by improper selection of operating range and lifting capacity.

Choosing the right cantilever crane or overhead crane can not only improve material handling in the workshop but also reduce unnecessary manual handling, optimize production space utilization, and support enterprises in achieving more efficient and standardized production management. Only by making a reasonable selection based on different factory conditions, workpiece weight, and work processes, combined with on-site requirements, can the true value of lifting equipment be realized.
