How to Choose a Hydraulic Welding Boom: A Four-Step Guide to Arm Length, Drive, Load and Installation

This article was prepared by the technical team at Tai'an Xutai Technology Co., Ltd., based on practical experience in welding workstation selection.

When welding workshops purchase a hydraulic welding boom, the most common mistake is focusing only on arm length. In practice, arm length, drive method, wire feeder load capacity and installation structure are interdependent. Get any one of them wrong, and the equipment will either fail to reach the work area or be unable to rotate freely in the workshop. The following guide covers the selection process step by step.

1. Arm Length: Custom 3–15 m, Define Coverage Before Length

Poor workshop layout, limited welding reach and frequent movement of wire feeders and cables are common causes of lost efficiency at welding stations. Choosing the right arm length is essentially about planning the coverage of the working area first.

Xutai Technology offers custom arm lengths from 3 m to 15 m, with solutions determined by workshop space, workpiece size and workstation layout:

Single-section arm design: suitable for welding stations with a relatively fixed working range and a simple layout.

• Multi-section arm design: a segmented boom structure with adjustment capability expands coverage and adapts to welding needs at different positions.

• Made-to-order: arm length is determined by installation position, welding radius and actual operating space, reducing problems such as uncovered areas or excessive floor space occupation.

When selecting a boom, do not look at length alone. Rotation range, installation position and workshop aisles should also be checked to ensure the equipment covers the target stations without interfering with other production activities.

2. Drive: Manual Hydraulic Control for Flexibility and Stability

The drive method directly affects operating habits and running costs. A hydraulic welding boom uses hydraulic control for lifting and manual control for left-right rotation. In actual workstations, welders often need to fine-tune the wire feeder angle according to weld position. Manual rotation allows the operator to make adjustments without leaving the station, reducing repeated handling of the wire feeder. Arranging the wire feeder and cables above the boom also reduces cables dragging on the floor, tangling and aisle obstruction.

The base adopts a bearing design, which helps improve the stability and wear resistance of the rotating support. During selection, confirm the drive method, rotation range and daily maintenance requirements to match the working rhythm of the workshop.

3. Load: 80 kg Wire Feeder Bracket to Reduce Cable Dragging

Placing the wire feeder and cables directly in the working area can clutter the floor, make equipment movement inconvenient, and increase cable wear and daily tidying workload. The hydraulic welding boom is equipped with a wire feeder bracket with a load capacity of 80 kg, suitable for wire feeders and related configurations that meet the load requirements. Before use, the actual equipment weight, installation method and overall load requirements should still be checked.

This design addresses four main issues:

• Less cable accumulation on the floor: the wire feeder and cables are concentrated on the boom, improving workstation tidiness.

• More operating space: the wire feeder no longer occupies floor space, leaving room for workpiece handling and personnel operation.

• Easier wire feeder positioning: the wire feeder arm supports horizontal rotation, with a rotation angle of up to 320° for standard arm lengths; for a 3 m arm, the rotation angle is 180°, making it easier to adjust position for different stations.

• More efficient site management: a more orderly equipment and cable layout supports daily cleaning, inspection and workshop 6S management.

When purchasing, confirm whether the bracket load capacity and boom coverage match the workshop's welding needs, based on wire feeder weight, cable length, welding torch working range and actual welding process.

4. Installation: Column-Mounted or Wall-Mounted, Decided by Workshop Conditions

Hydraulic welding booms offer two installation methods: column-mounted and wall-mounted. The choice should be based on the existing workshop structure and production layout.

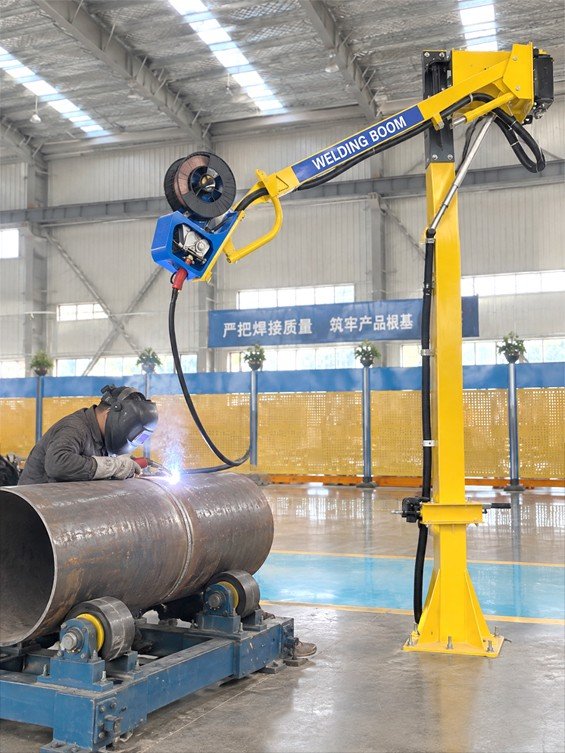

• Column-mounted installation: suitable for scenarios with a suitable floor position and an independent welding station layout. Before installation, confirm the foundation load-bearing capacity and plan the column position to avoid affecting logistics aisles.

• Wall-mounted installation: can be installed on workshop steel beams or structural columns that meet requirements, reducing floor space occupation. Before installation, the load-bearing capacity of the building structure, the connection method and the load generated by the boom during operation must be verified. Suitability should not be judged by the appearance of the steel beam alone.

Before determining the installation structure, measure the welding area, workpiece size and equipment position, then check arm length, rotation range and wire feeder support requirements. For specific configurations of column-mounted and wall-mounted options, see the [Hydraulic welding boom] product page.

Tai'an Xutai Technology Co., Ltd. can assist customers in selecting a suitable hydraulic welding boom based on workstation layout, arm length requirements and installation conditions, helping companies improve cable management, optimize space utilization and enhance the convenience of welding stations. To confirm the specific configuration of a hydraulic welding boom, contact our technical team directly.
