Traditional welding booms suffer from instability during hovering. Xutai Machinery has independently developed a new-generation hydraulic system that utilises a 5-ton hydraulic cylinder to provide smooth and precise motion control. The dual-arm design allows for multi-angle and multi-directional adjustment to adapt to complex welding scenarios.

Following this upgrade, the wire feed bracket now boasts a load capacity of 80–120 kg, ensuring stable hovering of the SPH-505 hydraulic welding boom and preventing the front arm from swaying or veering off course due to imbalance during the welding process.

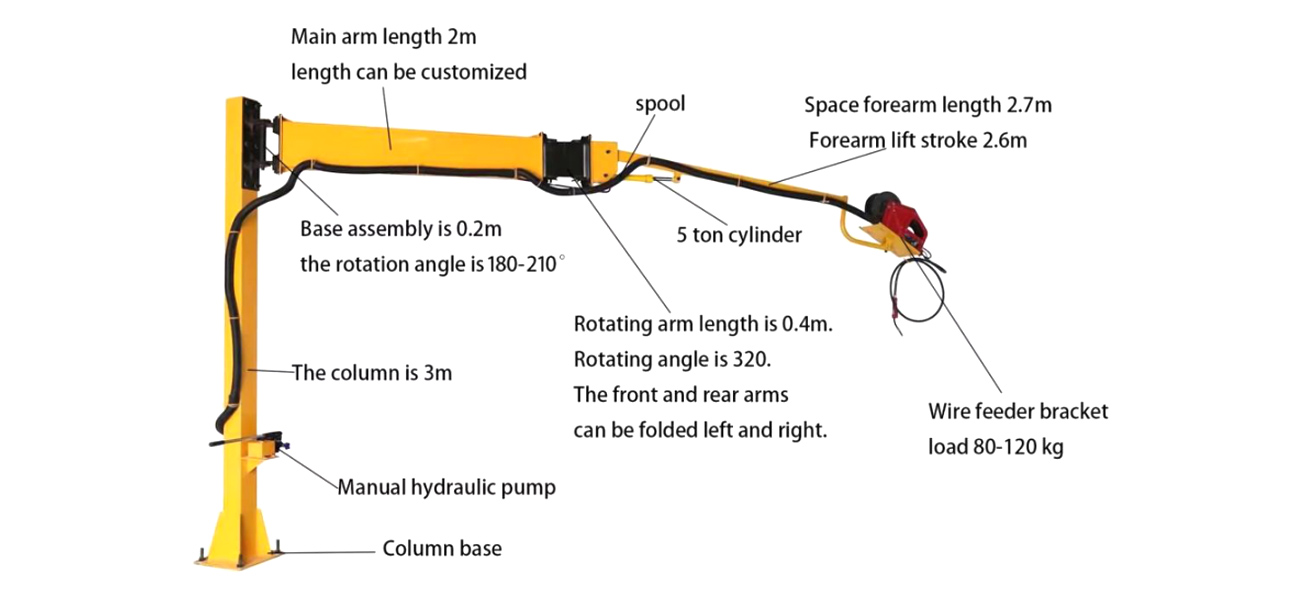

● Hydraulic lifting design

Equipped with a 5-ton hydraulic cylinder for high load-bearing capacity.

● Double-boom structure

The main boom and wire feeder arm fold inwards to the left and right for compact storage.

● Extended working radius

With a boom length of 5–6.5 meters , it offers a wide coverage area to meet the requirements of most welding workstations.

● 320° rotation

The wire feeder arm can rotate 320° and is hydraulically adjustable, ensuring flexible and convenient operation.

● Stable Structure

The 3:2 boom length ratio design ensures greater stability.

● Centralised Suspended Wire Feeding System

The wire feeder, cables, leads and air hoses are mounted on the boom. This prevents tangled cables on the floor, reduces cable wear and the risk of tripping, and improves site safety.

SPH-505 hydraulic welding boom, with flexible installation options:

Customised floor-mounted columns or installation on steel beams or walls within a steel-framed workshop.

● Floor-mounted column installation: The column is secured to the floor using bolts, allowing for flexible positioning according to the location of the welding station;

● Workshop steel beam installation: The unit is mounted directly onto the steel beams of the workshop structure, effectively saving floor space and improving the utilisation of the factory premises.

Both installation methods ensure the stable operation of the welding boom, meeting the requirements of various welding production lines and workstations.

● Xutai Machinery’s welding booms are finished using a pure electrostatic powder coating process.

● We are available in a range of colors including yellow, orange and green.

● Should you require any other colors, simply provide the relevant colour code and we will produce them to your specifications.

How is the load-bearing capacity of the SPH-505 hydraulic welding boom tested?

1. Static load test

Install the SPH-505 hydraulic welding boom in position, attach the standard weight assembly, and apply loads in stages from the rated load to 1.25 times the rated load to 1.5 times the rated load, allowing the structure to stand for 10–30 minutes.

Observation: No plastic deformation, no cracks in the welds, no structural deformation, and no abnormal noises.

If none of the above conditions are present after 30 minutes, the product is deemed to have passed.

2. Dynamic Test

The SPH-505 hydraulic welding boom is repeatedly raised and lowered under rated load, with the main boom rotating 180° and the wire feeder arm rotating 320°, and subjected to start-stop cycles. Check for any vibration, looseness or fatigue cracks. If none of the above issues occur during one hour of dynamic testing, the product is deemed to have passed inspection.

3.Once the above static and dynamic tests meet the acceptance criteria, the quality control department applies labels and affixes a certificate of conformity, and the product is released for market distribution.

The Xutai Machinery SPH-505 hydraulic welding boom is widely used in:

● The waste bin manufacturing and processing industry

● The manufacture of lifting equipment

● Welding of construction machinery such as excavators

● The manufacture of vehicles such as coaches and lorries

● The manufacture of agricultural machinery such as tractors

● The manufacture of mining equipment

With extensive experience in the field of welding auxiliary equipment, the SPH-505 Hydraulic Welding Boom offers more than just a set of welding accessories; it enhances welding efficiency, optimises workshop management and improves the working environment. Compared to traditional floor-mounted wire feeders and cable-dragging methods, the SPH-505 offers significant advantages in terms of space utilisation, safety management and ease of operation.
