Traditional welding workstations often suffer from cable clutter, frequent wire feeder relocation, and reduced operating efficiency. The SPE-305 Electric Welding Boom Arm eliminates these issues by suspending welding accessories overhead, allowing operators to focus entirely on welding tasks.

Xutai Machinery has upgraded the arm structure with a heavy-duty wear-resistant bearing system that has passed long-term operational testing. This design reduces friction, improves rotation smoothness, minimizes maintenance requirements, and extends equipment lifespan.

The result is a safer, cleaner, and more productive welding environment.

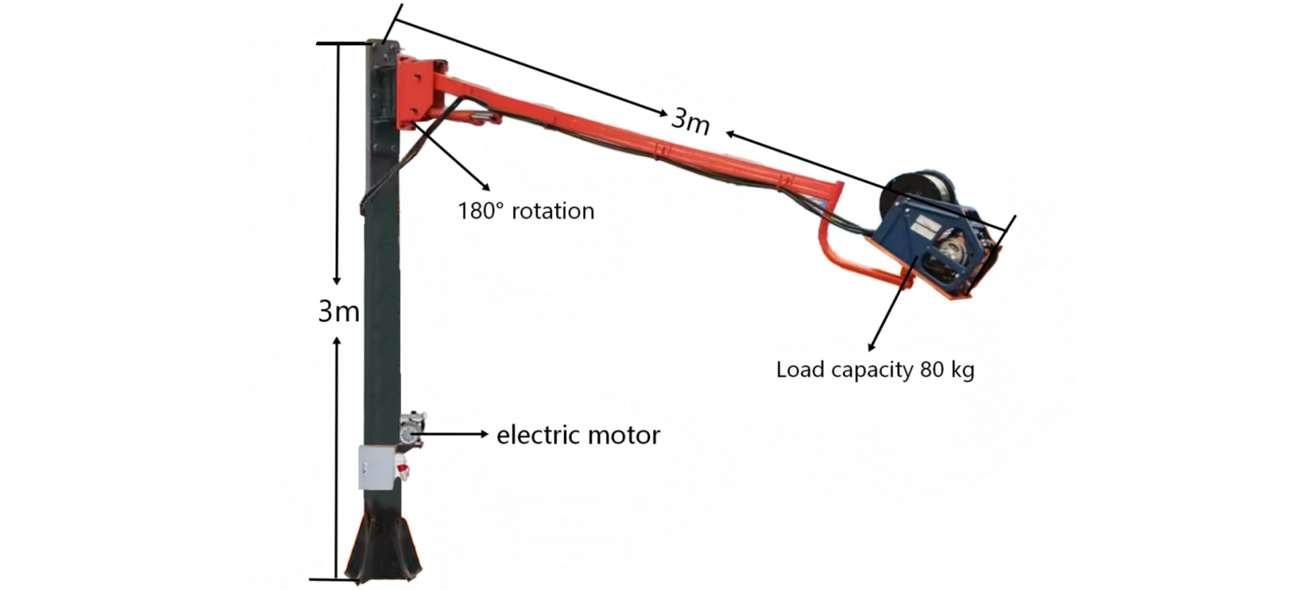

● Electric Lifting System

Powered by a 220V/60Hz electric motor, the lifting mechanism enables smooth and effortless height adjustment for different welding positions.

● 3-Meter Working Radius

The 3m arm length provides sufficient coverage for standard welding stations while maintaining compact installation requirements.

● 180°Horizontal Rotation

The boom rotates 180° horizontally, allowing operators to access multiple welding positions without relocating equipment.

● 80kg Wire Feeder Capacity

The reinforced wire feeder bracket supports up to 80kg, ensuring stable operation of welding equipment and accessories.

● Wear-Resistant Structural Design

Critical rotating components incorporate durable wear-resistant materials that reduce mechanical wear and extend service life.

● Improved Productivity

By eliminating the need to drag cables and move wire feeders repeatedly, operators can complete welding tasks faster and with less physical effort.

● Cleaner Workshop Environment

Suspended cables and hoses reduce floor clutter, improve safety, and support lean manufacturing practices.

The SPE-305 Electric Welding Boom Arm offers two installation methods to suit different workshop layouts:

● Floor-Mounted Column Installation

A freestanding column structure provides flexible placement without relying on existing building structures.

● Overhead Beam Mounting

The boom arm can be mounted directly onto workshop steel beams, saving floor space and maximizing workspace utilization.

Both installation options ensure stable operation and reliable performance in demanding industrial environments.

● Xutai Machinery’s welding booms are finished using a pure electrostatic powder coating process.

● We are available in a range of colors including yellow, orange and green.

● Should you require any other colors, simply provide the relevant colour code and we will produce them to your specifications.

1.Static Load Test

The arm is installed and tested with calibrated weights under the following conditions:

Rated Load

125% Rated Load-150% Rated Load  Each stage is maintained for 10–30minutes.

Inspection criteria:

● No structural deformation

● No weld cracking

● No abnormal noise

● No permanent displacement

2.Dynamic Operation Test

Under rated load conditions, the SPE-305 performs continuous lifting, lowering, and 180° rotation cycles.

Testing includes:

● Continuous operation for one hour Rotation performance evaluation

● Structural stability inspection

● Fatigue resistance verification

3.Products that pass all testing procedures receive quality certification before shipment.

The SPE-305 Electric Welding Boom Arm is widely used in:

● Structural steel fabrication

● Pressure vessel manufacturing

● Sheet metal production

● Machinery component welding

● Automotive parts manufacturing

● Construction equipment fabrication

● Dust collection equipment production

● Ventilation duct manufacturing

● Fitness equipment production

● Metal fabrication workshops

It is particularly suitable for high-volume welding operations requiring continuous production and improved workflow efficiency.

With over 15 years of experience in welding auxiliary equipment manufacturing, Xutai Machinery continuously improves product performance through innovation and strict quality control.

The SPE-305 Electric Welding Boom Arm combines:

●Reliable electric lifting technology

●Durable structural design

●Smooth rotation performance

●Customized configuration options

●Professional technical support

By optimizing welding workstation layouts and reducing unnecessary equipment movement, the SPE-305 helps manufacturers improve productivity, reduce labor intensity, and create a safer welding environment.
