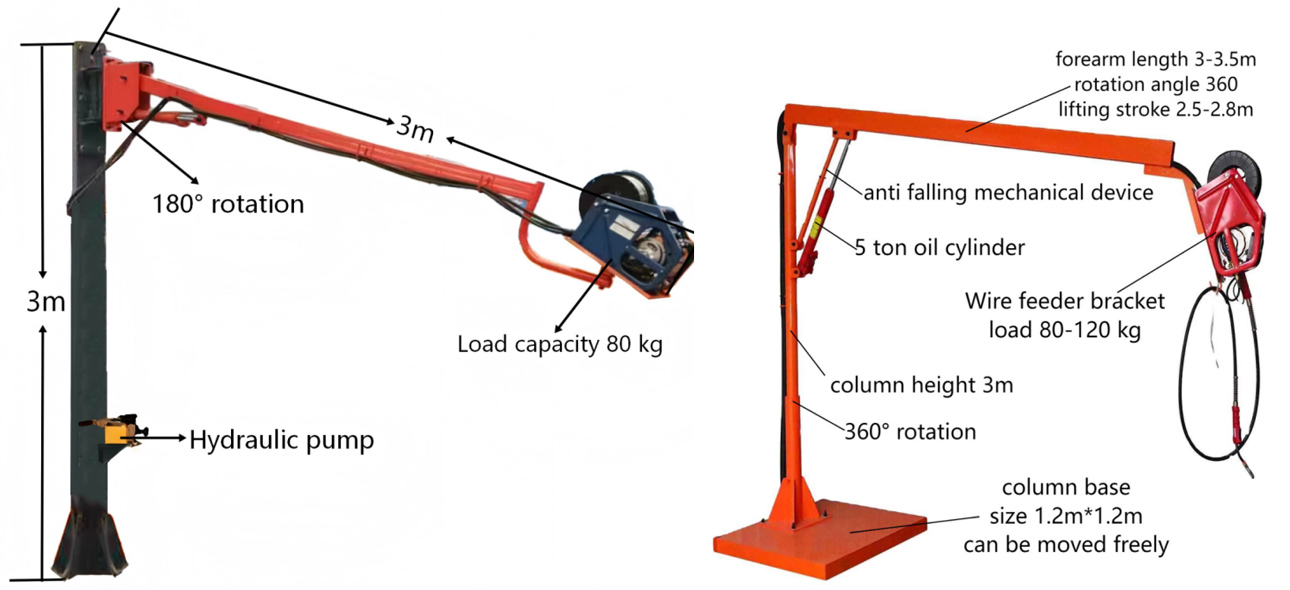

The SPH-305 hydraulic welding boom (also known as a welding space arm or wire feeder arm) is an auxiliary welding device specifically designed for welding workstations, primarily used to suspend wire feeders, welding torches, cables and air hoses. Featuring a 3-meter single-arm design, the main arm supports 180° horizontal rotation and is equipped with a hydraulic lifting system, allowing flexible height adjustment to suit welding requirements. It is suitable for welding environments with smaller workpieces and limited working space. The wire feeder bracket has a load capacity of 80 kg. The integrated design of the wire feeder effectively reduces cable tangling on the floor and the need for frequent handling, significantly enhancing the convenience of welding operations and maintaining a tidy workshop environment.

During prolonged use, traditional hydraulic welding booms are prone to issues such as damage to wear-resistant components, cracking of the base, or structural loosening due to frequent friction between the main boom and the base, thereby affecting the equipment’s service life and operational stability.

To address this industry challenge, Xutai Machinery has independently developed a high-pressure wear-resistant sleeve. Having undergone rigorous 24-hour dynamic compression testing, it offers excellent wear resistance and compressive strength, effectively reducing wear caused by prolonged friction. Following this upgrade, the main boom rotates more smoothly and stably, maintaining optimal performance even in high-frequency welding environments. This reduces equipment maintenance costs and extends the service life of the entire machine.

● Hydraulic lifting system

Equipped with a hydraulic drive system, the height of the boom can be adjusted according to the welding position, making operation effortless.

● 3-meter working radius

Featuring a 3-meter single-arm design, it covers standard welding workstations and is suitable for welding environments with limited space.

● 180° horizontal rotation

The main arm supports 180° manual rotation, allowing flexible adjustment of the welding working range and improving workstation coverage.

● 80kg Load-bearing Wire Feeder Bracket

The wire feeder bracket has a load capacity of 80kg, providing stable support for the wire feeder and related welding accessories.

● High-pressure wear-resistant sleeve structure

The main arm connection points utilise proprietary high-pressure wear-resistant sleeves, effectively reducing friction wear and extending the equipment’s service life.

● Reduced non-welding downtime

Eliminates the need for frequent repositioning of the wire feeder to adjust the welding position, reducing labour intensity and improving operational efficiency.

● Suitable for confined workstations

Fully adapted to space-constrained production environments such as metalworking, civil defence equipment, mechanical manufacturing and small-workpiece welding.

The SPH-305 hydraulic welding boom offers two mounting options: column-mounted and workshop steel beam wall-mounted. These can be selected flexibly according to the workshop structure and actual production requirements.

● The column-mounted installation utilises a floor-standing column support structure, which is not dependent on the workshop layout and can be flexibly positioned in various welding areas;

● The workshop steel beam wall-mounted installation, on the other hand, utilises existing steel structures or steel beams for fixing, requiring no floor space and helping to optimise equipment layout whilst improving workshop space utilisation.

Regardless of the installation method chosen, the SPH-305 hydraulic welding boom is guaranteed to operate smoothly, providing reliable support for different welding stations and production lines.

● Xutai Machinery’s welding booms are finished using a pure electrostatic powder coating process.

● We are available in a range of colors including yellow, orange and green.

● Should you require any other colors, simply provide the relevant colour code and we will produce them to your specifications.

How is the load-bearing capacity of the SPH-305 hydraulic welding boom tested?

1. Static load test

Install the SPH-305 hydraulic welding boom in position, attach the standard weight assembly, and apply loads in stages from the rated load to 1.25 times the rated load to 1.5 times the rated load, allowing the structure to stand for 10–30 minutes.

Observation: No plastic deformation, no cracks in the welds, no structural deformation, and no abnormal noises.

If none of the above conditions are present after 30 minutes, the product is deemed to have passed.

2. Dynamic Test

The SPH-305 hydraulic welding boom is repeatedly raised and lowered, rotated 180°, and started and stopped under the rated load to check for any vibration, looseness or fatigue cracks. If none of the above issues occur during one hour of dynamic testing, the product is deemed to have passed inspection.

3.Once the above static and dynamic tests meet the acceptance criteria, the quality control department applies labels and affixes a certificate of conformity, and the product is released for the market.

The Xutai Machinery SPH-305 hydraulic welding boom is widely used in:

● Welding of steel structural components

● Manufacture of pressure vessels

● Welding stations for sheet metal structural components, mechanical parts, etc.

● Batch welding of road machinery equipment such as chassis and hoppers

● Welding of dust extraction equipment and ventilation duct fittings

● Batch welding of steel tube frames for fitness equipment

● Metal structural component processing workshops

It is particularly suitable for welding scenarios involving large batches and long continuous production runs, helping to improve production efficiency and workshop workflow.

For 15 years, Xutai Machinery has remained committed to technological innovation and product upgrades. Through our independently developed high-pressure wear-resistant sleeves, a mature and stable hydraulic lifting system, and rigorous quality control, we have continuously enhanced the performance of the SPH-305 hydraulic welding boom.

Furthermore, Xutai Machinery can provide professional customised solutions tailored to clients’ specific requirements, helping businesses optimise welding processes, improve production efficiency, reduce labour intensity, and achieve more efficient welding production management.
