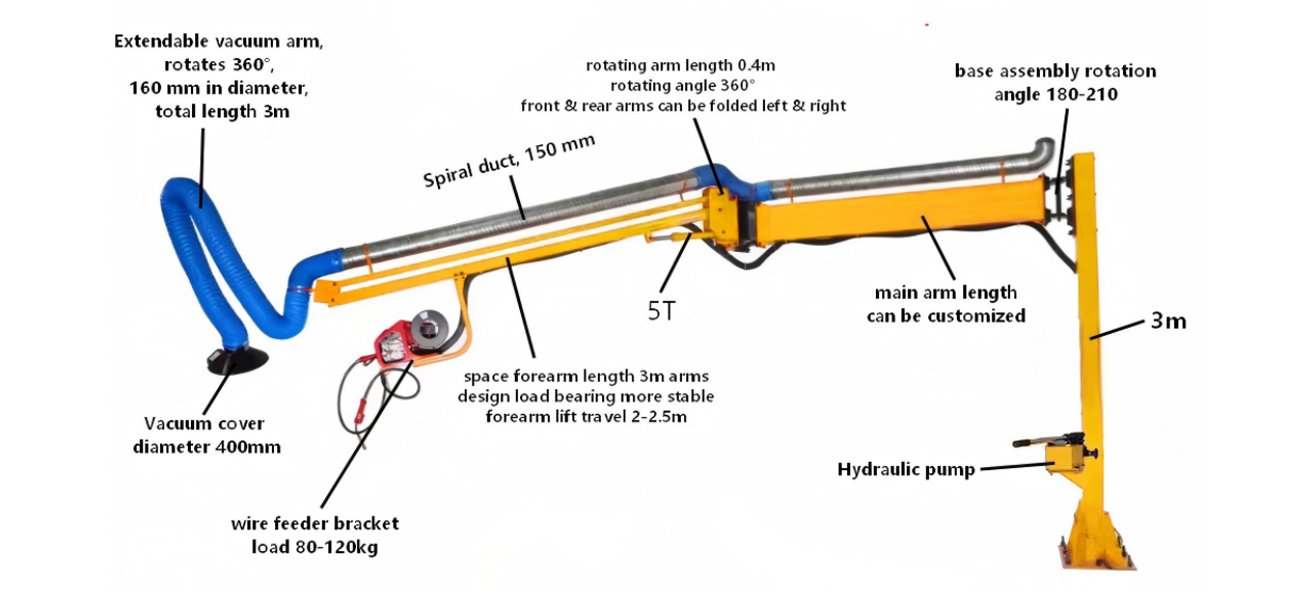

Unlike conventional welding boom arms, the connection between the main arm and column utilizes a heavy-duty bearing structure. This design significantly reduces friction, improves rotation smoothness, enhances wear resistance, and extends overall equipment lifespan.An optional dust extraction duct is available, fitted with a 2-meter flexible arm capable of 360° rotation, to collect welding fumes in real time, thereby improving the working environment and enhancing safety.

Traditional welding boom arms often experience wear at the connection point between the arm and the column due to continuous rotation and heavy loading. Over time, this can result in reduced stability, increased maintenance costs, and shorter service life.

To address these challenges, Xutai Machinery designed the SPH-605 with a reinforced bearing-supported rotation system. Compared with traditional sleeve structures, the bearing design provides smoother movement, lower friction resistance, and superior durability.

The powerful 5-ton hydraulic cylinder ensures stable lifting performance under demanding industrial conditions, reducing operator effort while maintaining precise positioning.In addition, a highly efficient dust extraction system has been installed, which collects fumes and dust in real time during the welding process, thereby reducing the spread of harmful gases and improving the workshop environment.

● 5-Ton Hydraulic Cylinder System

The hydraulic lifting system is powered by a heavy-duty 5-ton cylinder, providing smooth, stable, and reliable vertical adjustment for welding operations.

● 6-Meter Working Radius

The double-arm design provides a working radius of up to 6 meters, covering large welding areas while reducing equipment relocation time.

● 180° Main Arm Rotation

The primary arm rotates 180° horizontally, allowing operators to access multiple welding positions efficiently.

● 320° Wire Feeder Arm Rotation

The rotating arm supports 320° rotation, providing exceptional flexibility for complex welding tasks.

● Heavy-Duty Bearing Structure

The connection between the main arm and column utilizes industrial-grade bearings instead of traditional friction sleeves.

Benefits include:

· Reduced wear

· Smoother rotation

· Higher load stability

· Lower maintenance requirements

· Longer service life

● High-efficiency dust extraction for a better working environment.

Equipped with a dust extraction system, it effectively collects and treats fumes and harmful gases generated during welding, thereby improving the working environment.

● 80kg Wire Feeder Capacity

The reinforced wire feeder bracket safely supports up to 80kg of welding equipment and accessories.

● Reduced Labor Intensity

Operators can reposition welding equipment quickly without manually dragging wire feeders, cables, and hoses.

The SPH-605 Hydraulic Welding Boom can be installed using two methods depending on workshop requirements.

● Floor-Mounted Column Installation

The freestanding column design provides flexible positioning and does not rely on existing building structures.

● Steel Beam Installation

The boom arm can be mounted directly to workshop steel beams, saving valuable floor space and maximizing production area utilization.

Both options ensure stable operation and reliable performance in industrial environments.

● Xutai Machinery’s welding booms are finished using a pure electrostatic powder coating process.

● We are available in a range of colors including yellow, orange and green.

● Should you require any other colors, simply provide the relevant colour code and we will produce them to your specifications.

1.Static Load Test

The SPH-605 is installed and tested using calibrated weights.

Testing sequence:

· Rated Load

· 125% Rated Load

· 150% Rated Load

Each load level is maintained for 10–30 minutes.

Inspection requirements:

· No structural deformation

· No weld cracking

· No abnormal noise

· No permanent displacement

2.Dynamic Operation Test

Under rated load conditions, the SPH-605 repeatedly performs:

· Hydraulic lifting and lowering

· 180° main arm rotation

· 320° secondary arm rotation

· Start-stop operation cycles

After continuous operation for one hour, the equipment must show:

· No vibration abnormalities

· No loosened components

· No fatigue cracks

· No structural damage

Products passing all tests receive quality certification before shipment.

The SPH-605 Hydraulic Welding Boom Arm is widely used in:

· Shipbuilding Industry

· Steel Structure Fabrication

· Pressure Vessel Manufacturing

· Heavy Machinery Production

· Crane Manufacturing

· Construction Equipment Production

· Metal Fabrication Workshops

· Industrial Welding Production Lines

Its large operating range and heavy-duty hydraulic design make it ideal for continuous welding operations and high-production environments.

With over 15 years of welding auxiliary equipment manufacturing experience, Xutai Machinery continuously develops innovative solutions for industrial welding workshops.

The SPH-605 combines:

● Powerful 5-ton hydraulic lifting technology

● Effectively filters welding fumes to safeguard air quality in the workshop.

● Large 6-meter working coverage

● High durability and wear resistance

● Flexible installation options

● Custom manufacturing services

By reducing equipment movement, improving workspace organization, and increasing welding efficiency, the SPH-605 helps manufacturers lower labor costs and achieve higher productivity.

Choose XUTAI SPH-605 Hydraulic Welding Boom Arm for a safer, more efficient, and more reliable welding workstation solution.
